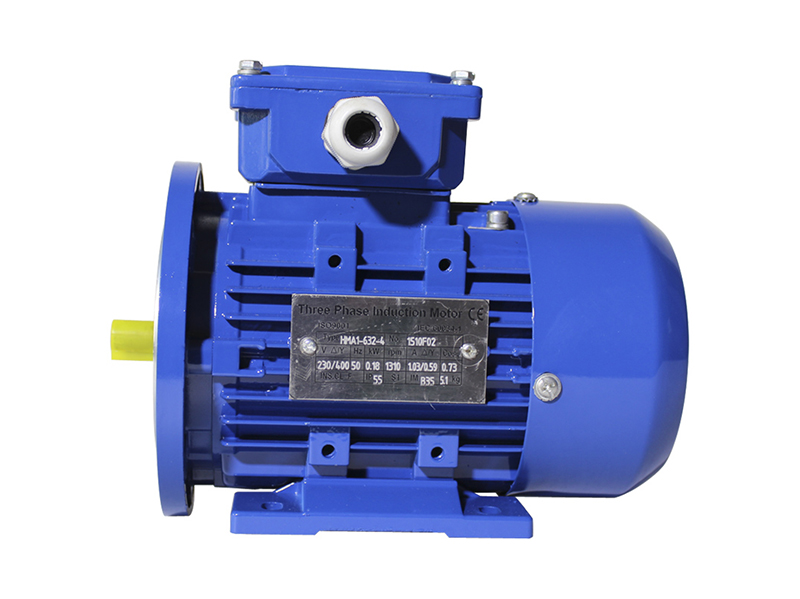

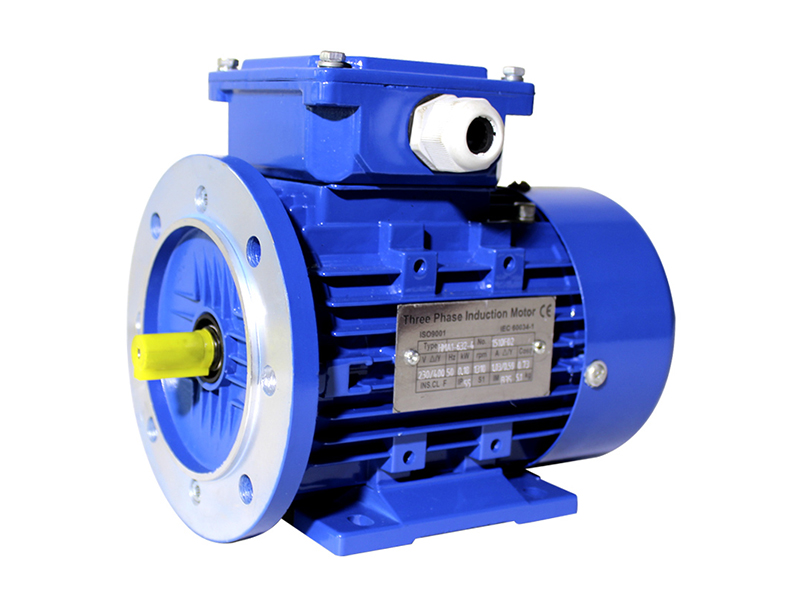

Product Description
1. Available in 2,4,6 pole motor(0.75kw and up) with efficiency grade 3. According to GB18613-2012 and efficiency class IE2(50HZ) according to IEC 60034-30.
2. Optimized compact style construction.
3. standard mounting construction according to IEC 60034-7:IMB3, IMB5, IMB35 and etc.
4. Re-greasing devices for frame size 280-355 as standard, and for frame size 100 ~ 250 as option.
5. Winding protections with PTC, PT100 and KTY84-130 as option.
6. Converter-fed operation at mains voltage up to 460V,1LE0001 motors are capable for converter-fed operation with certain characteristics load.
| Motor Summary | ||||||||||
| Frame size | 80- 355 | |||||||||
| Pole | 2-8. | |||||||||
| Rated voltage | 380V | |||||||||
| Frequency | 50Hz | |||||||||
| Power | 0.75kw ~ 315Kw | |||||||||
| Protection degree | IP55 (IEC 60034-5) | |||||||||
| Cooling method | IC411 | |||||||||
| Insulation class | F | |||||||||
| Ambient Temperature | -20°C~40°C | |||||||||
| Altitude | up to 1000m over sea | |||||||||
| Working Duty | S1(Continuous) | |||||||||
